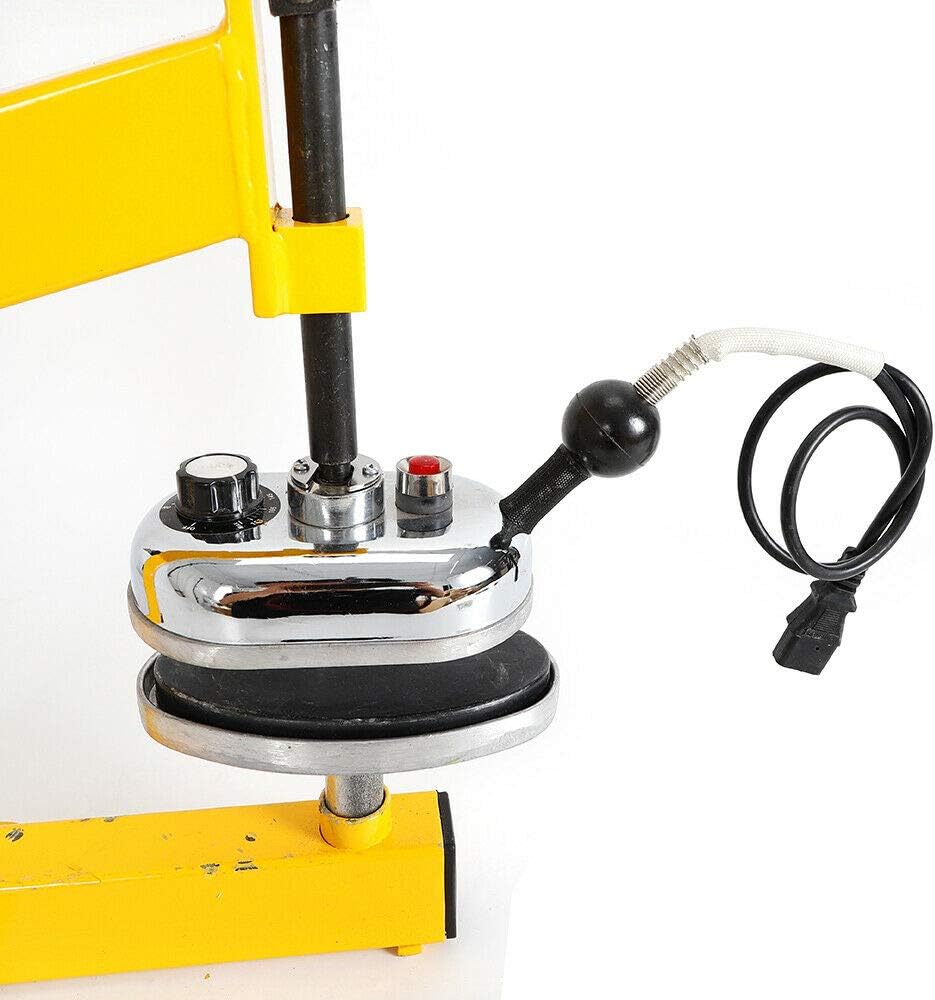

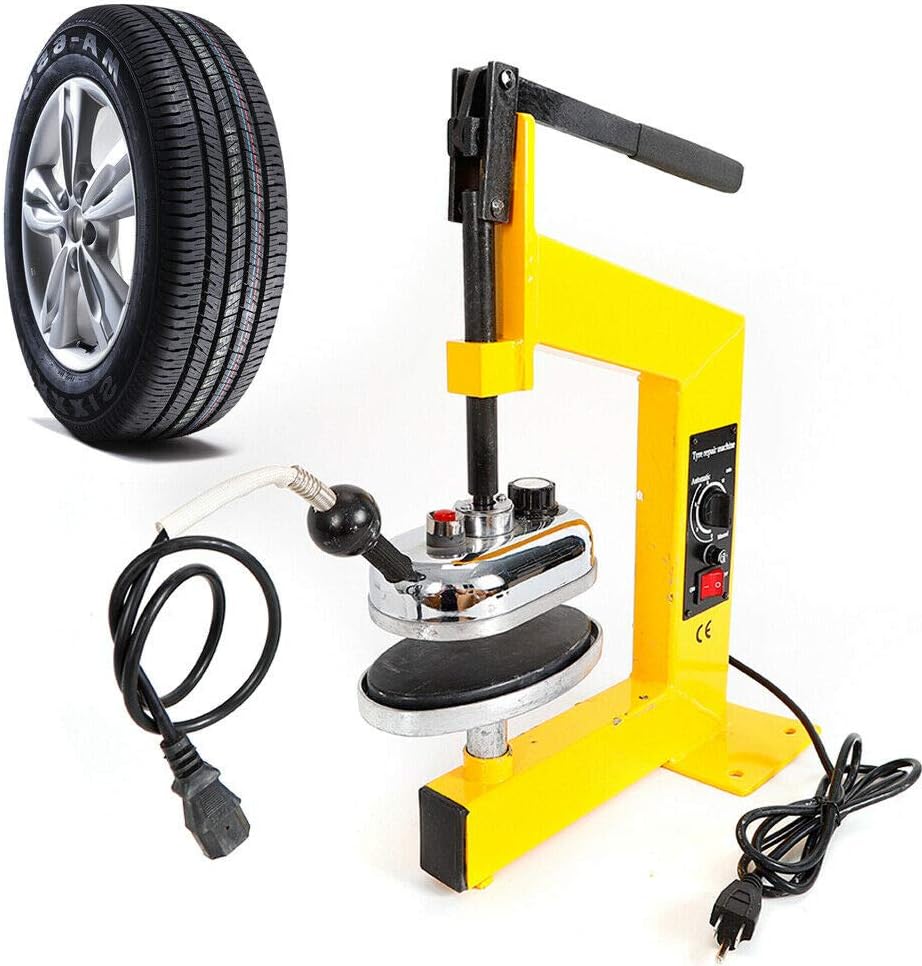

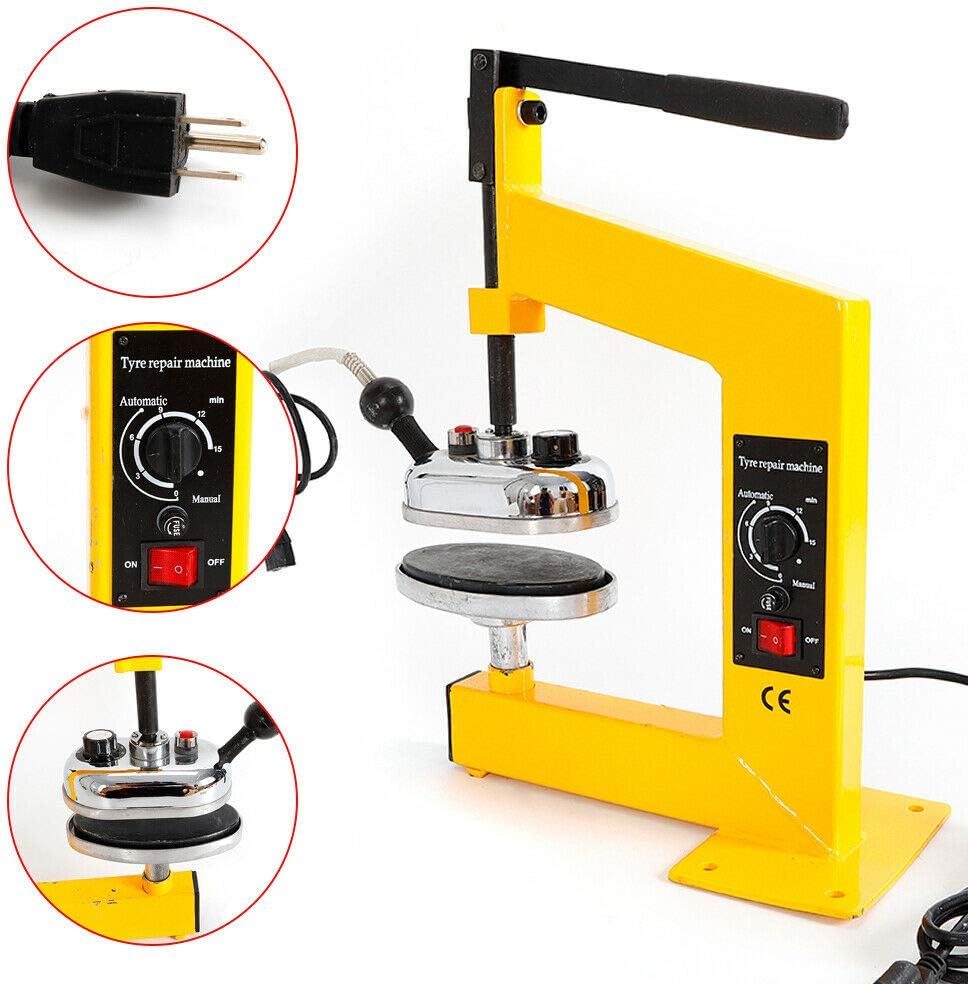

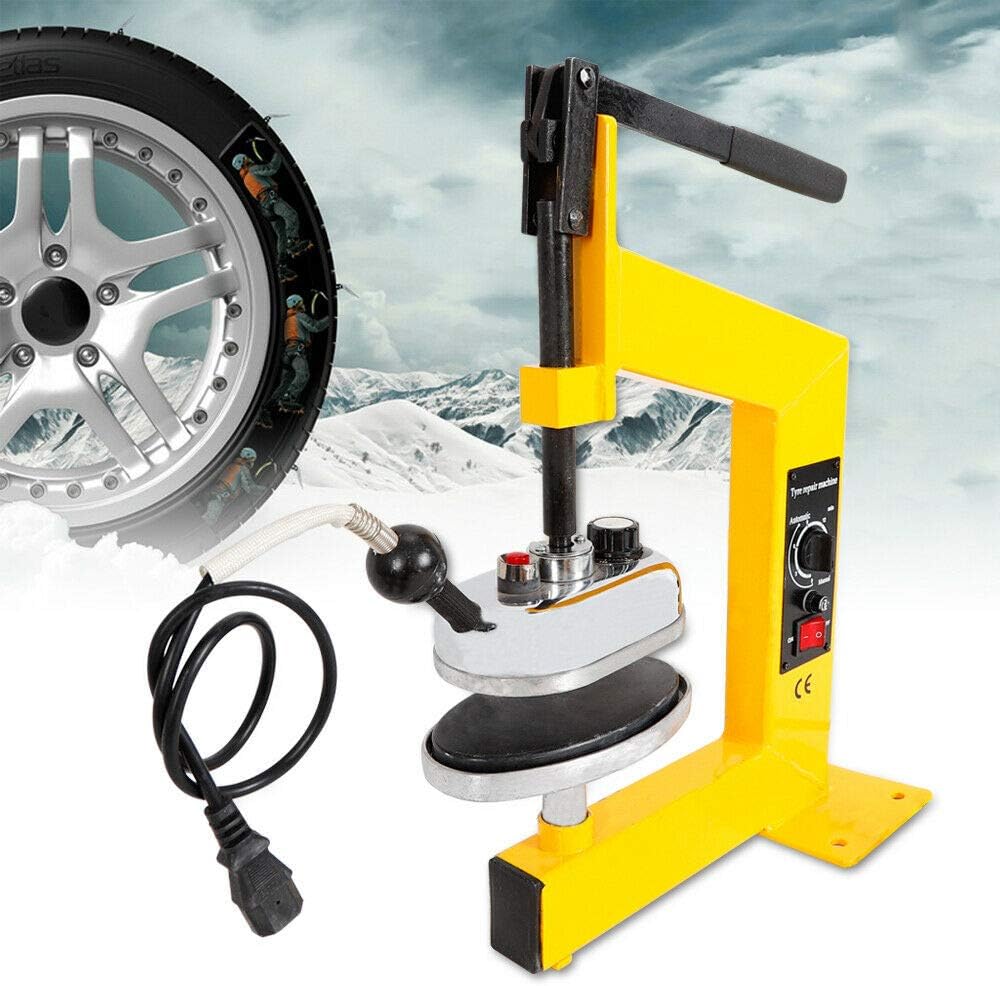

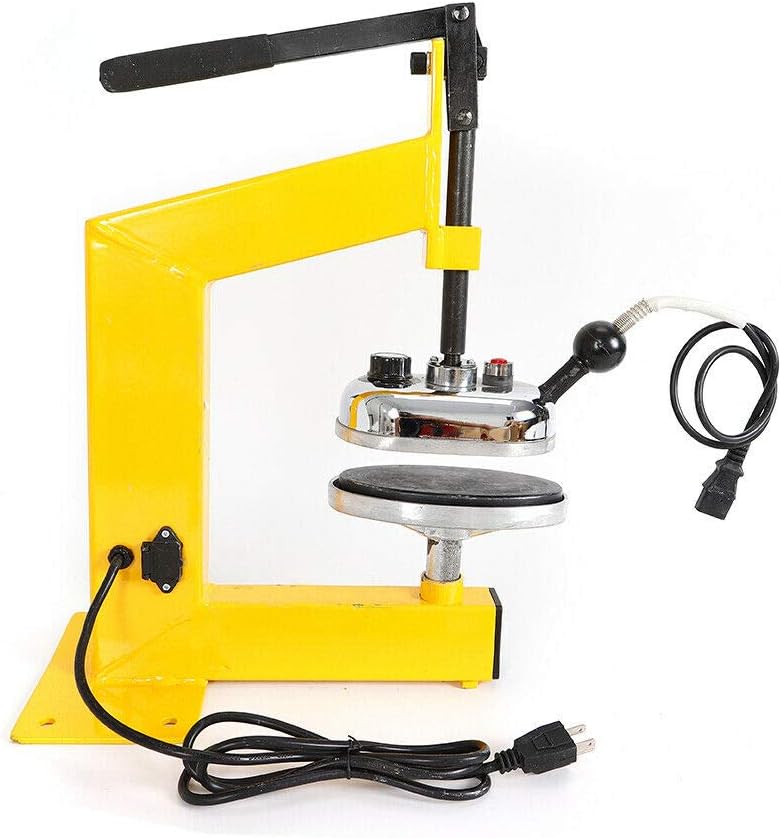

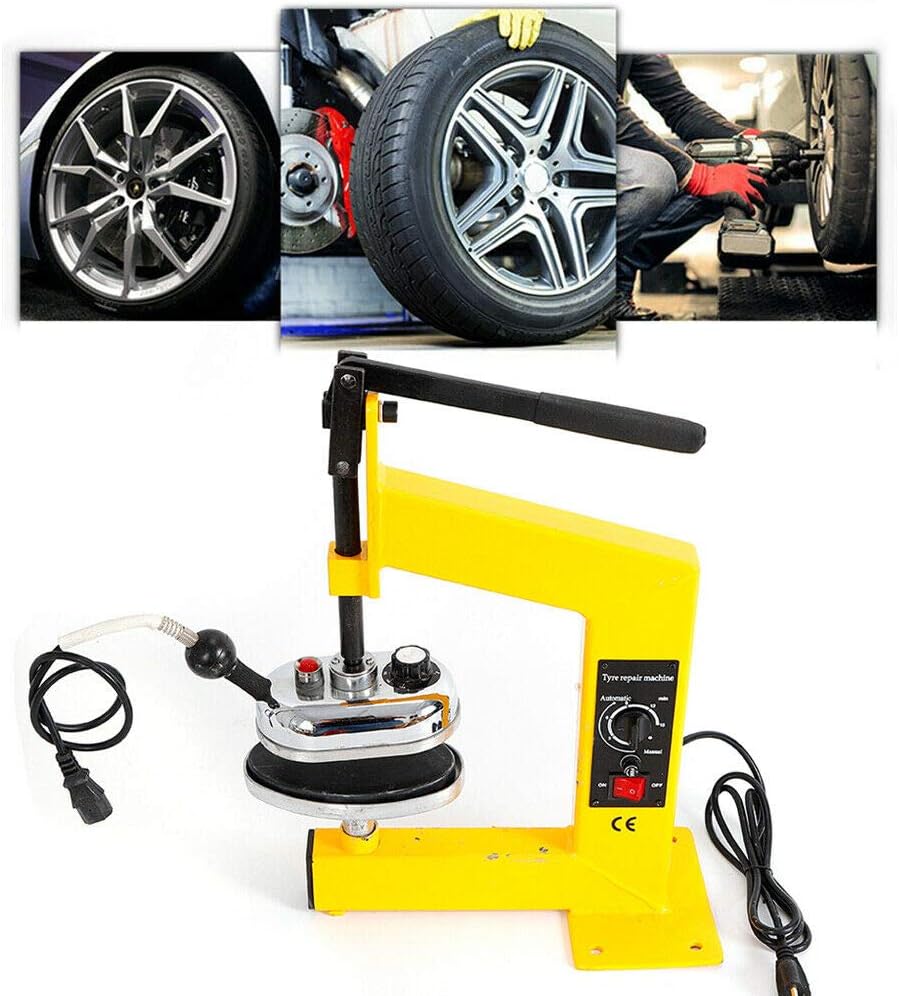

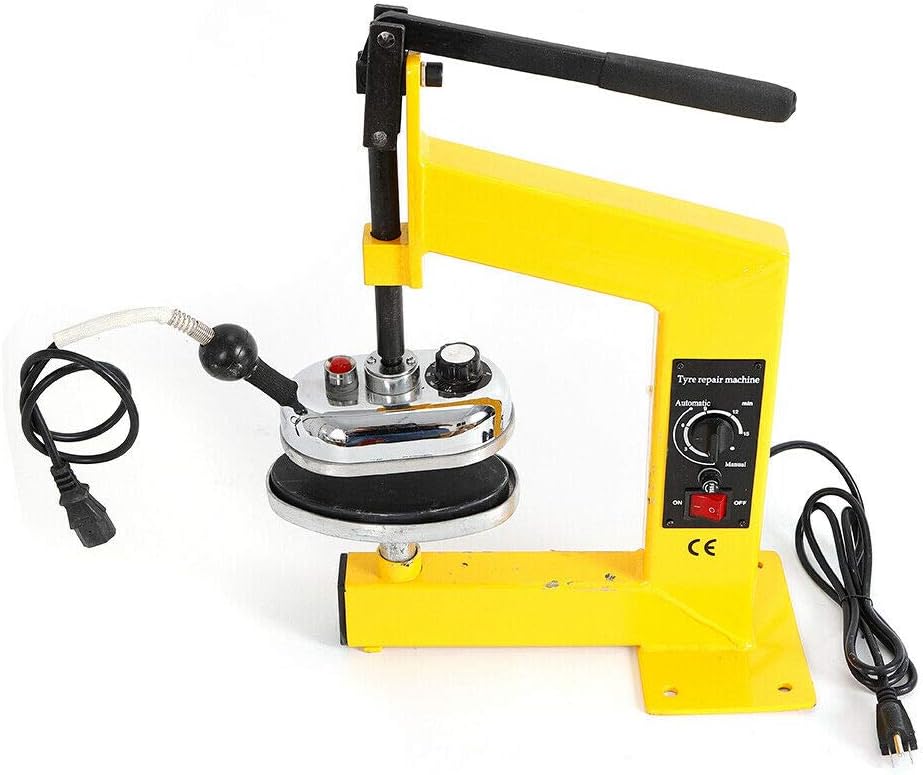

110V Tire Repair Tool Vulcanizing Machine M676014

AJD-7 pressure bar type tire repair machine has the advantages of temperature adjustment, timed heating, manual and automatic two-speed, flexible and light, fast operation, economical and durable. When repairing, according to the environment, inner tube, tire, vacuum tire and other different conditions, choose the temperature to repair, and truly achieve cost-effective, time-saving and labor-saving stable good results.

Specification:
Input Voltage: 110V
Input Power: 500W
Temperature Range: 120-195°C±10°C
Repair Area: 120*70mm2
Each piece G.W./N.W.: 9.5kg/8.3 kg
Each piece Packing Size: 375*195*510 mm
Each Unit G.W./N.W.: 38g/36.8 kg (QTY: 4PCS)

Tire repair method:
1. Clean and mark the surface of the tire that needs to be replenished.
2. Use a sander to rough the surface of the wound, slightly larger than the wound.
3. Apply the liquid adjusted with raw rubber and gasoline (or use hot glue) with a brush to evenly spread the hair.
4. Cut the appropriate size of the raw rubber and fill it on the wound. If the wound is large, the raw rubber should be overlapped.
5. Press the iron on the raw rubber (if possible, put a thin layer of aluminum or iron on the raw rubber), aim the wound in the center of the iron, and press down on the pressure bar to fix the tire.
6. Turn on the power switch, the power indicator lights up, and the temperature is set to the appropriate position.
7. Turn on the time switch and set it in the appropriate position (can be set on the manual gear if no timing is required), this is the iron starting work.
8. At the end of vulcanization, the tire repair machine automatically cuts off the iron power supply (if the manual gear is selected, the power should be manually cut off).
9. Turn off the power, pull up the lever, remove the tire, and finish.
Package Includes:
1*Tire Repair
